Terex Finlay I-120RS Track Impact Crusher

Terex Finlay I-120RS Track Impact Crusher

orCall 806.335.1553

Description

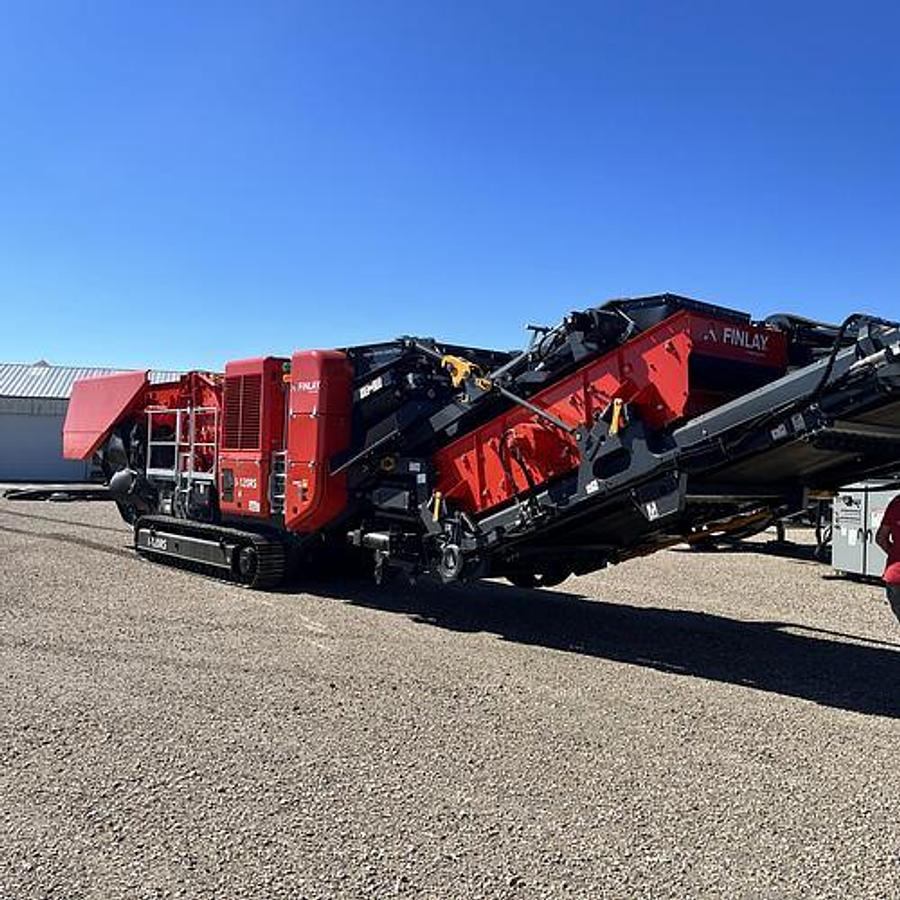

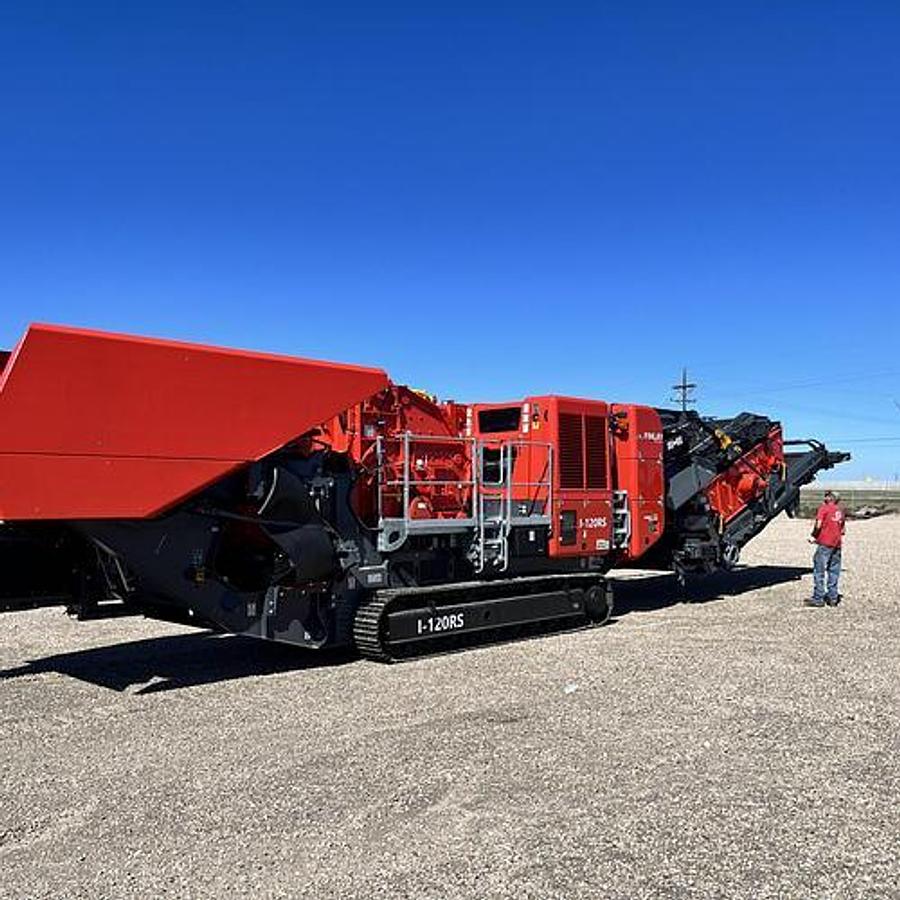

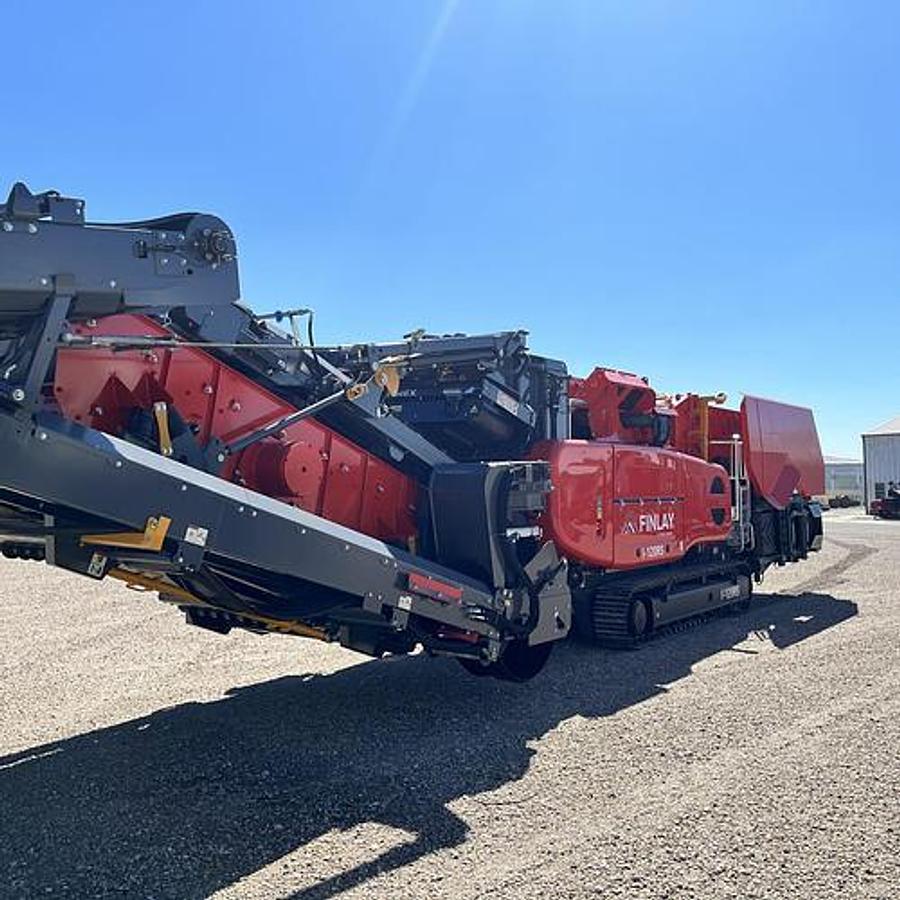

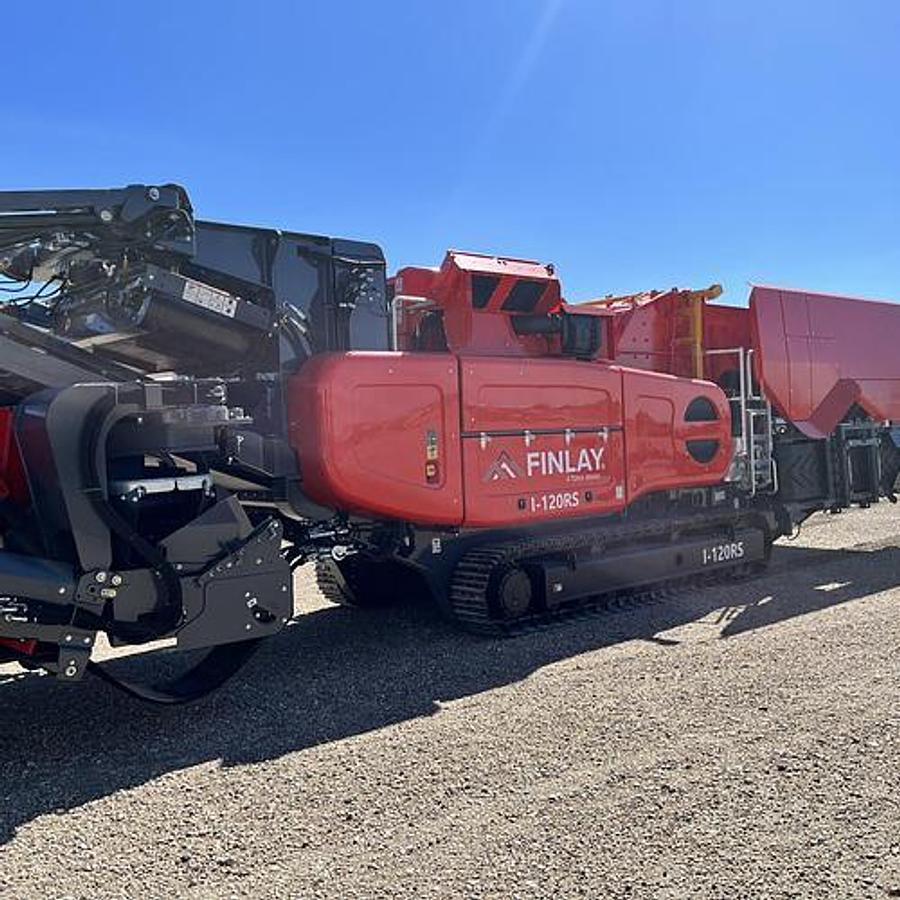

New Terex Finlay I-120RS Track Impact Crusher, Tier 4 Final: Scania DC9 257kW (350 hp) Engine, Terex CR038 Impact Chamber, Chamber Fully Hydraulically Assisted Apron Setting and hydraulic Apron Release, Manual Raise Chamber Flap Allowing Extra Inlet Clearance, 4 Bar Rotor - Martensitic Blow Bars 2 High & 2 Low, Direct Drive Via Clutch, Drive Belt Tensioner Wheel, Blow Bar Lifting Tool Supplied, Drive Pulley to Suit Higher Speed Range, Rotor Fitted with 2 full Martensitic Ceramic & 2 Low Martensitic Blow Bars, VGF Fixed Hopper, Stepped Grizzly Feeder with Integral Pre-Screen, Standard 50mm Spacing, Mesh Aperture on Grizzly Feeder: 38mm, Selectable Discharge to By-Pass Conveyor or Main Conveyor, Blanking Mat for VGF, Independent Pre-Screen Blanking Mat, Included with Pre-Screen Option, Piped for Over Band Magnet, Bypass Conveyor with 650mm Wide Plain Belt, Discharging to the RHS of the Machine, Twin Pole Over Band Magnet C/W Stainless Steel Skirting & Stainless Steel Discharge Chute.

Specifications

ManufacturerTerex Finlay
ModelI-120 Track Impact Crusher
ConditionNew
Serial NumberTRX120RSCOMR55295
