Portable and Stationary Auto Balance Impact Crusher


Portable and Stationary Auto Balancing Impact Crusher Options

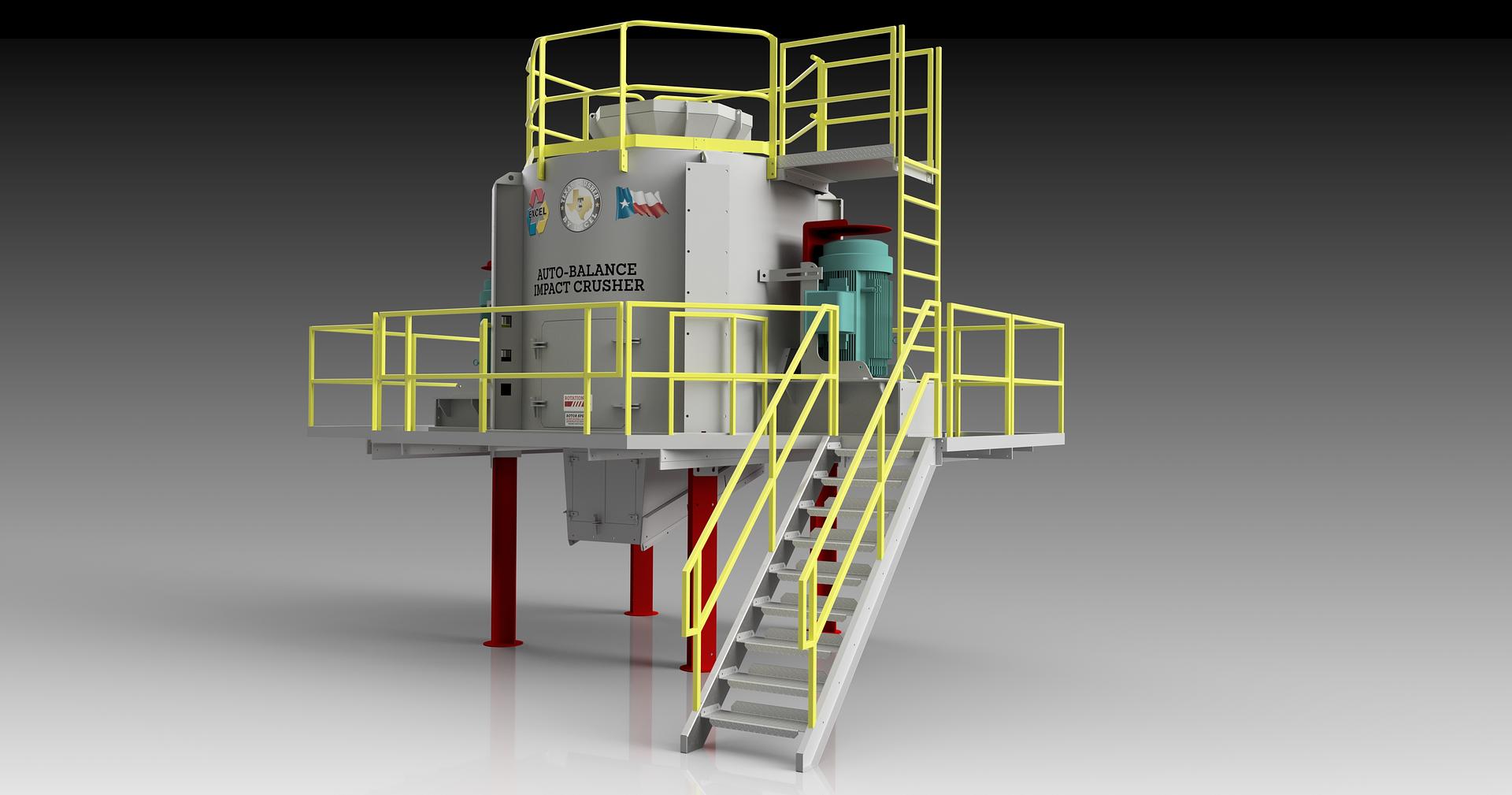

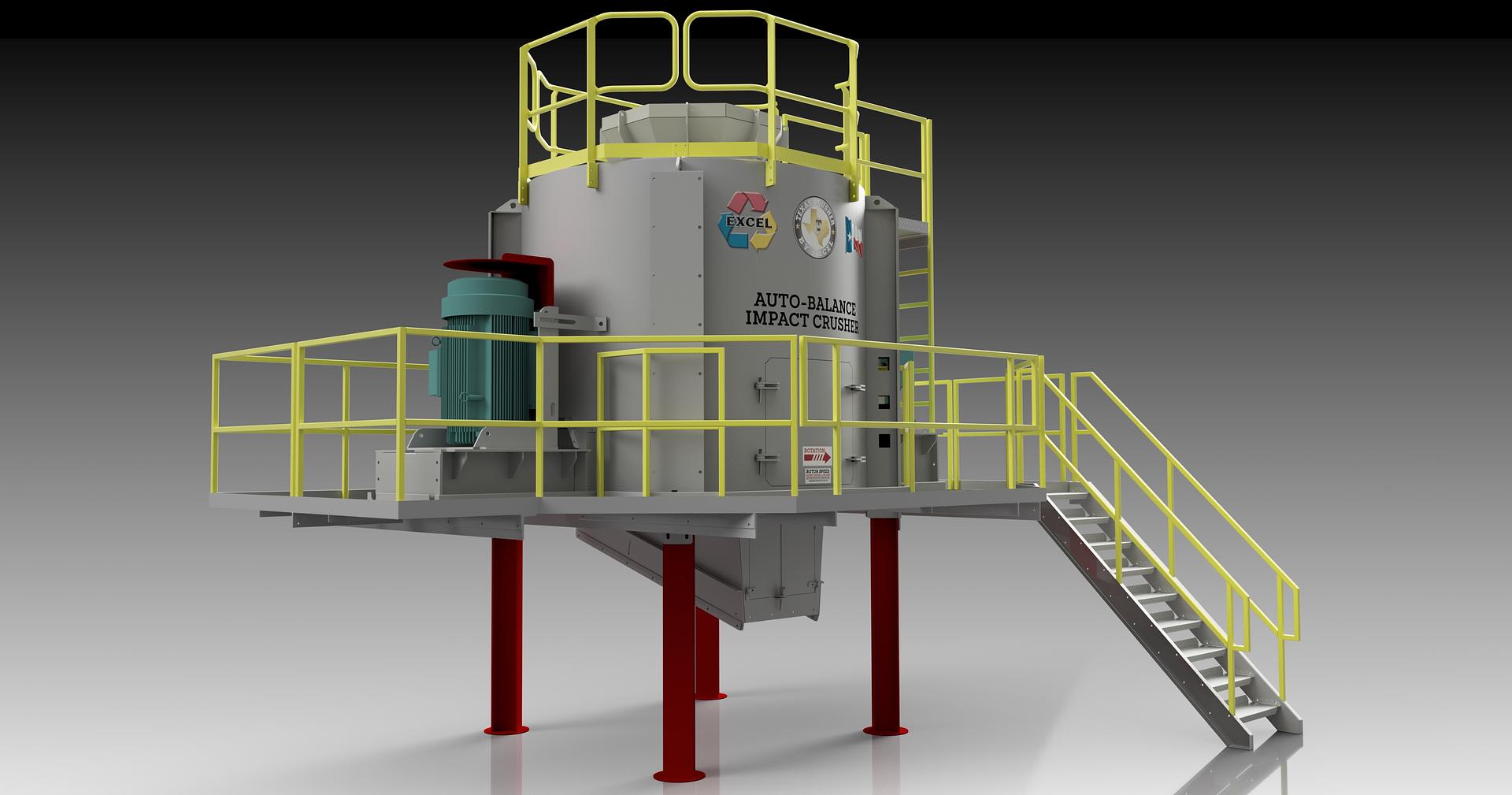

Stationary - Crusher Complete with All Tungsten Carbide Wear Liners in the Four Rotor Ports, Tungsten Carbine Distribution Plate, Tungsten Carbide Bolt Protector Ring, Maganese/Chrome Anvils in the Top and Bottom Rock Shelves, Rotor with Bolt on Wear Liners, Bearing Assembly with 12/8V2120 Sheave & N5-3/8 Bushing, Stairs, 4-3/8V2120 Belts, Crusher to Conveyor Discharge Chute, 36LB of Grease with Grease Pump, Hydraulic Pump and Cylinders for Belt Tensioning and Motor Stands

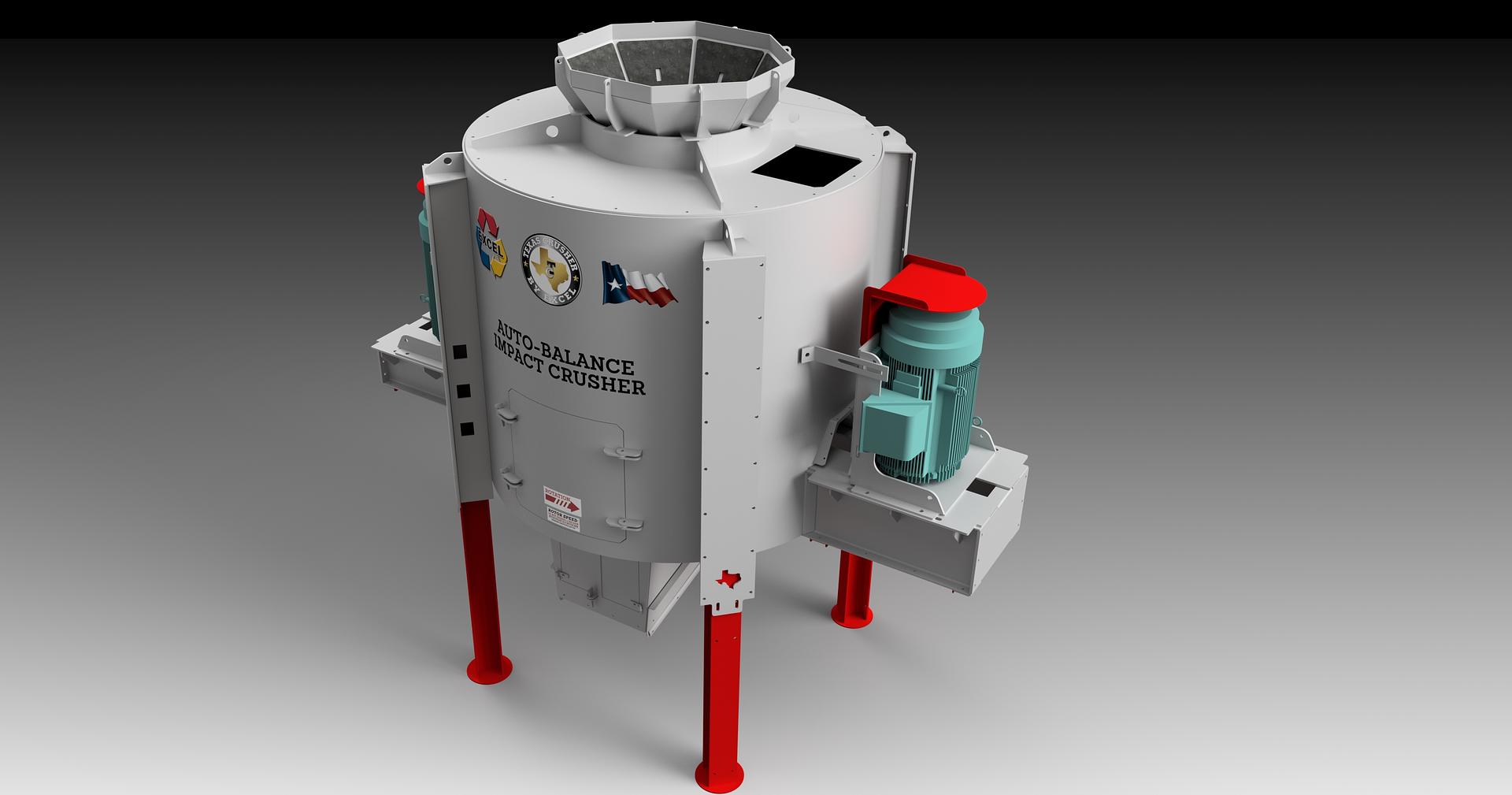

Portable – Crusher Complete with all Tungsten Carbide Wear Liners in the Four Rotor Ports, Tungsten Carbide Distribution Plate, Tungsten Carbide Bolt Protector Ring, Maganese/Chrome Anvils in the Top and Bottom Rock Shelves, Rotor with Bolt on Wear Liners, Bearing Assembly with 12/8V2120 Sheave & N5 -3/8 Bushing, 4-3/8V2120 Belts,36LB of Grease with Grease Pump, Hydraulic Pump and Cylinders for Belt Tensioning and Motor Stands, Mounted On Dual Suspension Chassis with 42" Side Discharge Conveyor, with 10HP C-Faced Motor, Right Angle Motorized Torque Arm II Reducer, 16" Drum Pulley, 12" Tail Pulley, Cema C Idlers, 3 Ply Belting, Primary Belt Scraper. Includes: (2) 300HP 1800RPM Motors, Electrical Switchgear Panel with VFD for Crusher (other HP sizes available)
